AM-7000 Microscope - Verex Dental

Key Features

Advanced multi-coated, anti-reflective apochromatic optics for exceptional image clarity
Manual continuous zoom magnification range from 1.4x – 22.8x
Integrated 4K 60FPS camera and recording system
FORA technology for comfortable upright viewing at multiple angles
210° inclinable binocular for improved ergonomic positioning
Fluorescence mode for enhanced differentiation of tooth structure and composite resin
Anti-glare mode to reduce reflections and improve procedural visibility
LED illumination with continuous variable spot sizing
Orange and green filter options
198–455 mm variable objective lens for flexible working distances
Voice controls for hands-free adjustment of lighting, filters, camera functions, and more
Single-handed operation with accessible controls and dials
Compact integrated power supply and cable management system
Designed to improve workflow efficiency, documentation, and procedural accuracy

Interpupillary distance adjustment

0-180° Inclinable binocular

Depth of Field Adjustment

AM-5000 includes a unique perspective system to enhance the depth of field. This adjustment enables the operator to observe details of different depths more clearly.

Live Feed Freeze

Image/Video Capture

6-Step magnification

Fluorescence Mode

Light Intensity Adjustment

198-455mm Variable objective lens

Optics and Magnification

Multi-coated, anti-reflective apochromatic optics deliver sharp, true-to-life image quality
Continuous manual zoom magnification range from 1.4x – 22.8x for detailed visualization across a wide range of procedures
198–455 mm variable objective lens provides flexible focal distances for operator comfort and clinical versatility
High-clarity optics improve precision during restorative, endodontic, surgical, and diagnostic procedures

Ergonomics & Operator Comfort

FORA technology maintains a comfortable upright viewing posture regardless of optical head angle
210° inclinable binocular allows operators to customize viewing position for reduced neck and back strain
Designed to support long procedures with improved ergonomics and reduced operator fatigue
Smooth articulating positioning system enables precise microscope placement and movement

Illumination & Visualization

Advanced LED illumination system provides bright, consistent lighting
Continuous variable spot sizing allows precise control of illuminated field size
Orange and green filter options enhance contrast and visibility during procedures
Anti-glare mode minimizes unwanted reflections caused by bright illumination for improved visual clarity

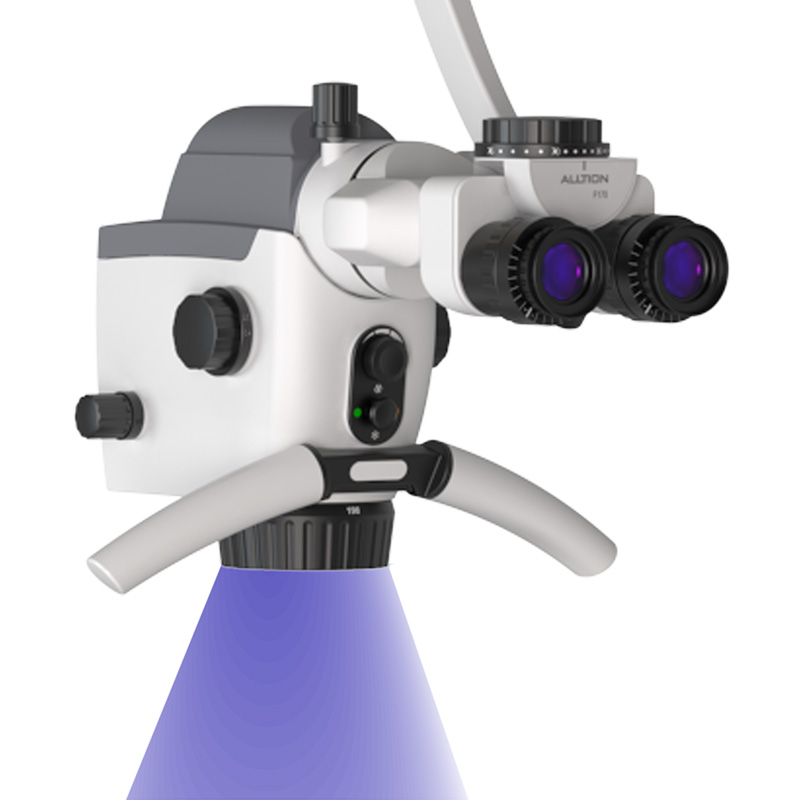

Fluorescence Technology

Fluorescence mode helps distinguish natural tooth structure from composite resin materials
Improves visibility of affected or treated areas for enhanced diagnostic confidence
Supports faster identification and treatment while helping reduce chair time

Imaging & Documentation

Integrated 4K 60FPS camera system captures high-resolution images and video
Built-in recording functionality simplifies case documentation and patient education
Ideal for treatment presentations, training, collaboration, and record keeping
Produces detailed visual content for clinical review and educational applications

Workflow & Controls

Voice control functionality allows hands-free operation of key microscope functions
Control lighting intensity, filters, spot size, camera functions, and more without interrupting procedures
Single-handed operation design keeps controls and adjustments within easy reach
Streamlined interface improves procedural efficiency and ease of use

Design & Integration

Compact integrated power supply and cable management system minimizes clutter
Space-efficient design helps maintain a clean, organized operatory
Built for durability, stability, and smooth everyday clinical operation
Combines advanced technology with intuitive usability for modern dental practices

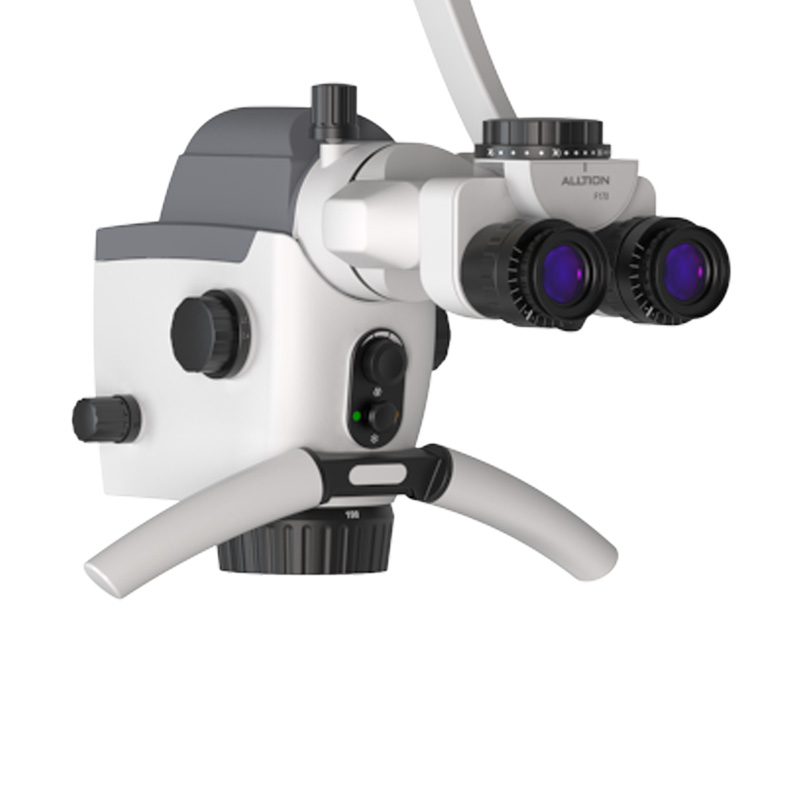

The Alltion AM-7000 Dental Microscope is designed to enhance clinical precision, ergonomics, and workflow efficiency for modern dental practices. Featuring advanced multi-coated apochromatic optics, continuous zoom magnification, and powerful LED illumination with variable spot sizing and filter options, the AM-7000 delivers exceptional image clarity for a wide range of procedures. Its 210° inclinable binocular system and FORA technology help clinicians maintain a comfortable upright posture regardless of viewing angle, reducing strain during extended treatments.

Built for both performance and convenience, the AM-7000 also includes an integrated 4K 60FPS camera and recording system for crystal-clear imaging and documentation. Advanced fluorescence and anti-glare modes improve visualization of tooth structure, composite materials, and affected areas while minimizing distracting reflections. With voice controls, compact integrated power management, and smooth single-handed operation, the AM-7000 combines cutting-edge technology with intuitive usability to support more efficient, accurate, and comfortable dental procedures.

	OVERVIEW
6 Step Magnification	Magnification range: 1.4x–22.8x
Objective Lens	Variable Focal Distance: 198-455mm
Flexible Optics Rotating Assembly (FORA)	FORA allows the operator to maintain a comfortable upright viewing posture regardless of the viewing angle. When angling the optical head, the binocular remains level.
One-Handed Operation	Without changing positions, control all microscope functions with one hand. Thumb operated controls including focal distance adjustment and image capture are located within reach on the optical head.
Inclinable Binocular	All Alltion dental microscopes come standard with a 0-180° inclinable binocular head allowing the microscope to conform to the operator’s most comfortable, ergonomic position.
4K Integrated Camera	The built-in 4K camera system provides hi-definition images and video transmission. Procedures may be observed in real time and are easily shared with patients and staff. The camera allows for recording and image capture, making it easier to conduct post-operative reviews and enhance doctor-patient communication.

	BUILT-IN 4K CAMERA SPECIFICATIONS
Sensor	1/1.8 Inch Sony high-sensitivity and low-noise CMOS
Output Interference	HDMI, USB 2.0
Video Resolution	4K (3840×2160) 60FPS (16:9) / MP4 Format
Camera Split Ratio	2:8
Video Resolution	4K ( 3840 x 2160) 60FPS (16:9) / MP4 Format
Picture Resolution	8M (3840 x 2160), 2M (1920 x 1080) / JPG Format
Basic Functions	Screen Freeze, Image Capture, Video Record, Automatic Exposure, White Balance, Play Back and Cross Curve, Sound Recording
Image Effect	Exposure, AE Light, Gain, Red Gain, Blue Gain, Saturation, Contrast, Sharpness, HDR, Detail, BLC
System Settings	Automatic/Autonomous Naming, Show/Hide Time, Show/Hide Logo, Image Resolution, Naming Setting, System Update, Restore Default, Version Information

	OPTICAL PARAMETERS
Objective Lens	F=198–455mm
	F=198mm		F=300mm		F=455mm
Magnification Charge	Total Magnification	Field of View (mm)	Total Magnification	Field of View (mm)	Total Magnification	Field of View (mm)
0.4	3.0x	71.8	2.3x	96.1	1.7x	132.0
0.6	4.6x	47.9	3.4x	64.1	2.5x	88.0
1	7.6x	28.7	5.7x	38.5	4.1x	52.8
1.6	12.2x	18.0	9.1x	24.0	6.6x	33.0
2.5	19.0x	11.5	14.2x	15.4	10.4x	21.1
